Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: LE/ACCEL
  • Model Number: SC(B)-10
  • Usage: Power
  • Phase: Three
  • Coil Structure: Toroidal
  • Coil Number: Autotransformer
  • Rated capacity: 10-4000KVA
  • Input voltage: 11kv/10.5KV/10KV/6.3KV/6KV
  • Output voltage: 400v
  • Standard: IEC/EN61558
  • Certification: CE standards
  • Type: Three Phase
  • Customized: customized capacity
  • Material: Copper Winding
  • Application: power
  • Frequency: 50/60Hz

Packaging & Delivery

Packaging Details Standard Export Packing for SC(B) dry type distribution transformer
Delivery Time 15 days
Product Description

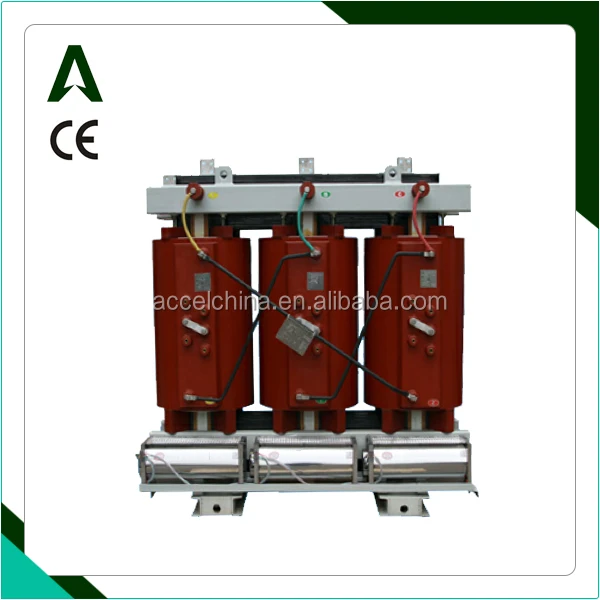

 SC(B) dry type distribution transformer distribution transformer manufacturer
10kv distribution transformer


Dry type resin insulated SC(B)11, SC(B)10, SC(B)9 distribution transformers are widely used for power supply & distribution in industrial and civil occasionsto step down grid voltage (6-35KV) to line voltage 400V. The transformers are resin insulated, which is safe, non-pollute, flame proof and can be installed directly on the load centrewith the merits of free maintenance, easy installation, low operation cost, low loss and excellent humidity resistance.

Main application in: High-rise buildings, airports, terminals, power plants, transformer stations, residential areas or packages of various sites.

Product standard:  IEC60076 & GB/T10228, GB109411, GB4208, GB6450



Main Specifications:

1. Voltage class: 6-35KV

2. Model of voltage regulation: Off-excitation or on-load tap changer

3. Tapping range: 5%, 2x2.5%,

4. Power Capacity: 10-4000kVA

5. Frequency: 50Hz or 60HZ

6. Phase No.: Single phase or three phase

7. Vector Group: Yyn0 or Dyn11

8. Impedance voltage: 4~8

9. Service condition: 100% relative humidity, ambient temperature not more than 40ºC or according to customers' requirements

10. Type of cooling: AN or AF

11. Protection class: IP00, IP20, IP23

12. Insulation level: F/F



Ambient conditions:
Altitude: ≤1, 000m
Highest ambient temperature: +40
Highest annual average temperature: +20
Highest monthly average temperature: +30
Lowest temperature: -25



SPECIFICATION:

  DIMENSIONS:





Main Features:
1low loss
2with protective case
3universal application
4IEC61558 and CE standards



Related picture:






  30kva THree phase transformer power transformer power supply transformer

Workshop Picture



FAQ



1. What is our advantage in the industry?

    Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.

    Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.

     prompt reply . Help customer win the business timely and provide stable deliver time.

SC(B) 10kv dry type cast resin insulated power supply distribution transformer three phase transformer

2. What is our sales and distribution policy?

    We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.

10kva THree phase transformer power transformer oil transformer power supply transformer

3. Do you have warranty policy?

    We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service  SC(B) three phase dry type transformer supplier distribution transformer
